Helion XP Thermal Scope Quick-Change Lens Series | F28 | F38 | F50

Product Description
$499.99
Maximum quantity available reached.

Helion XP Thermal Scope Quick-Change Lens Series
F28 | F38 | F50

What’s better than owning a single Helion XP Thermal Scope?  Owning two!  And that’s pretty much what you’ll end up with when you add a second quick-change lens to your Helion kit.

Are there times when you wish your Helion XP28 had a touch more range?  Simply a F50 lens set to almost double it!  Or alternately, do you already have a long-range Helion XP50 but wish you could occasionally switch to a lens with a wider field of view to make target acquisition a little easier?  All it takes is the addition of a wide-angle F28 lens set.

Magnification (Optical to Digital Zoom)
Range
(Detection)

Field
of
View

Best
Application

F28 Lens Set
1.4X to 11.2X
1,095 yds
22.0°
Wide-Angle Target Acquisition
F38 Lens Set
1.9X to 15.2X
1,475 yds
16.3°
Mid-Range Situational Awareness
F50 Lens Set
2.5X to 20.0X
2,000 yds
12.4°
Long-Range Surveillance

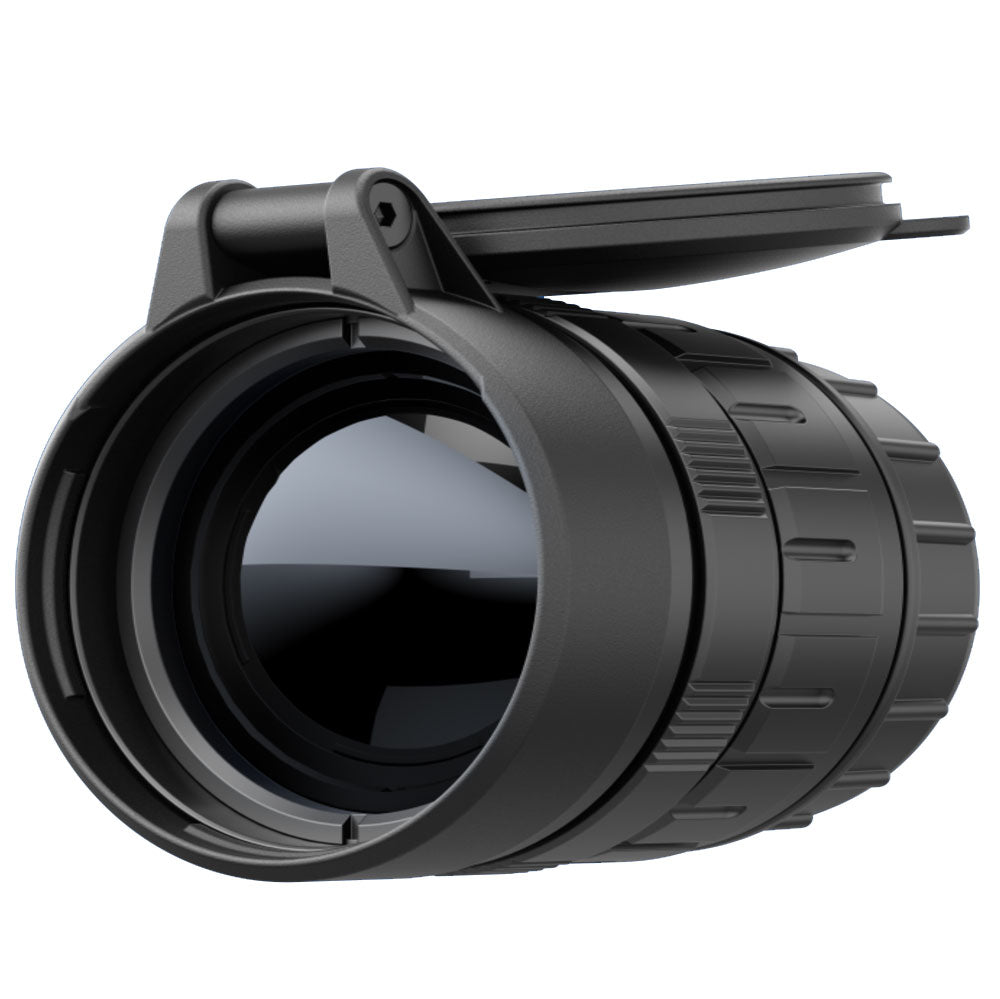

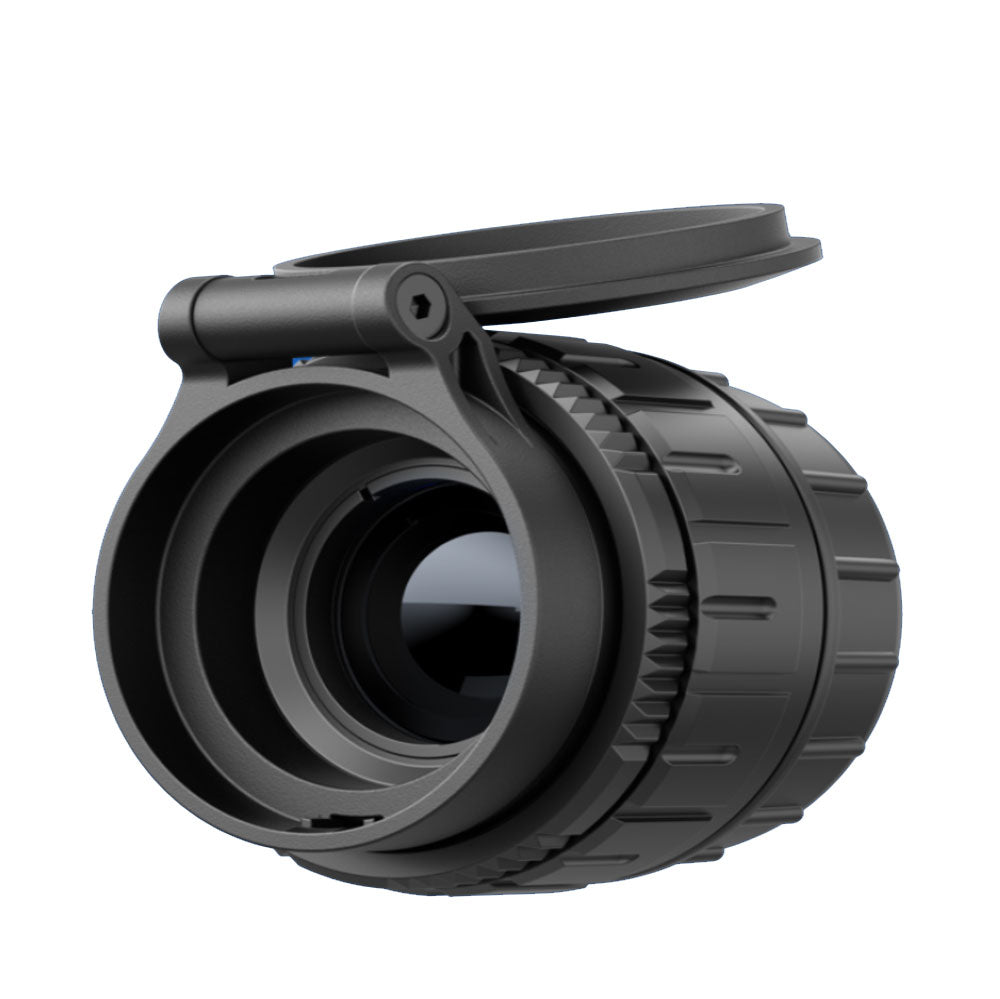

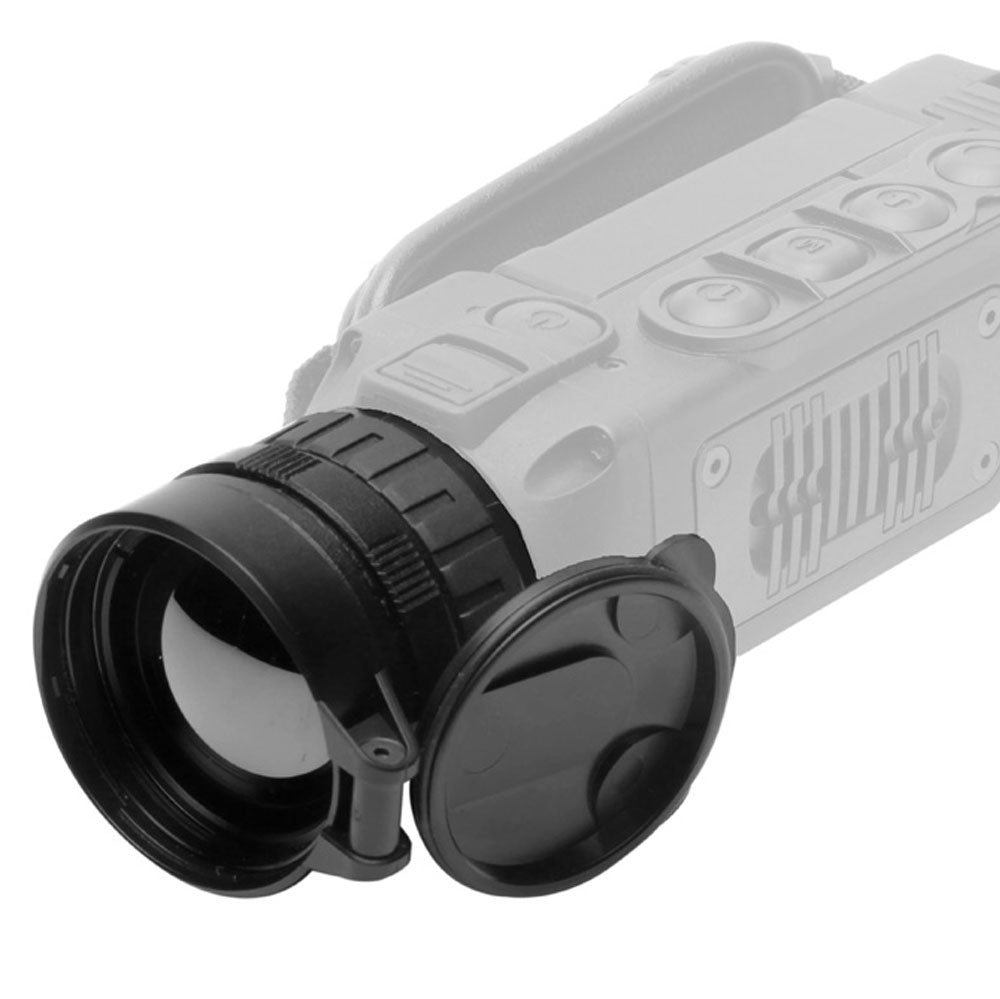

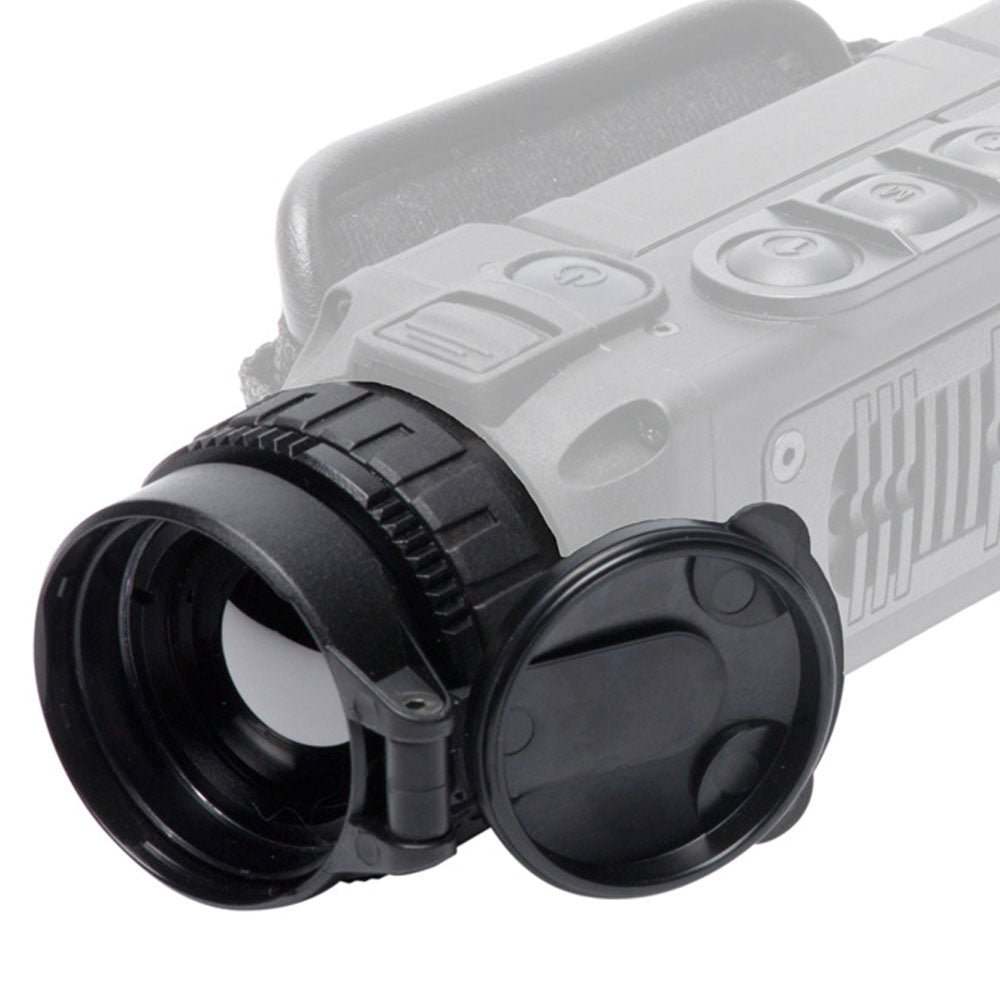

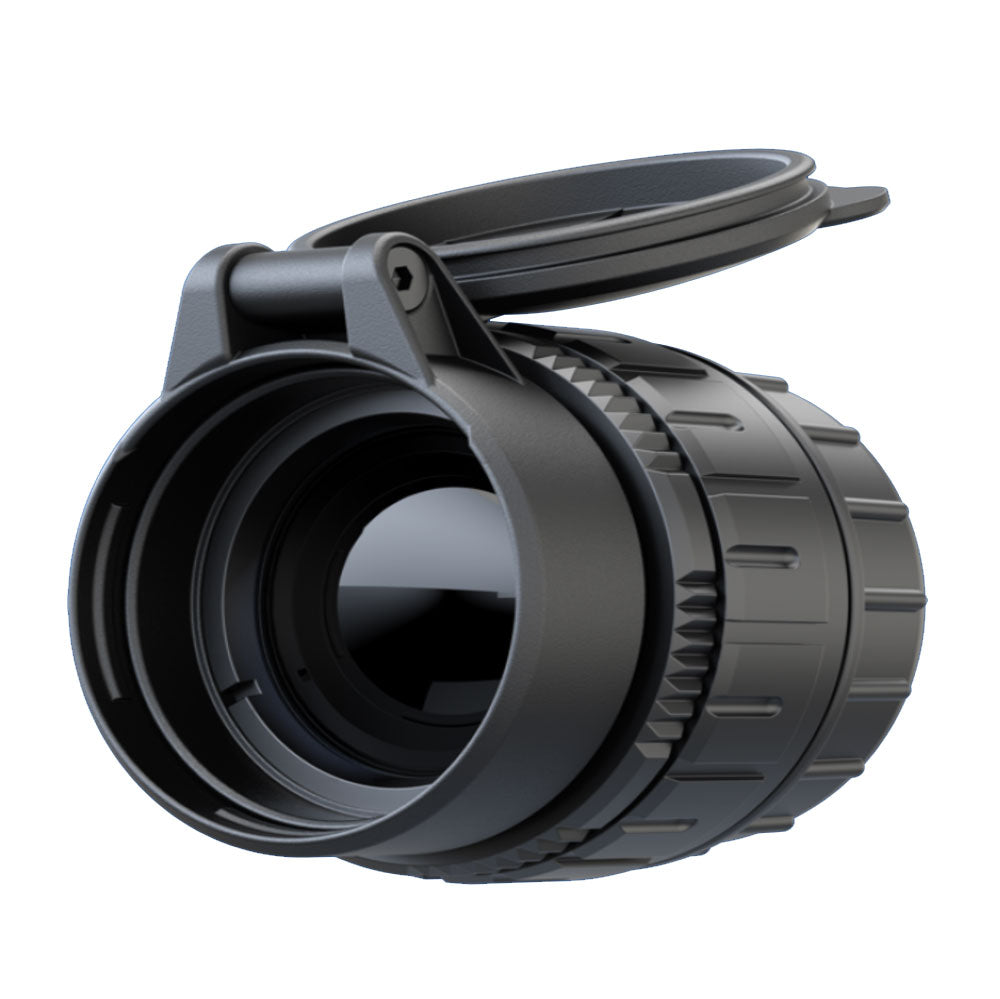

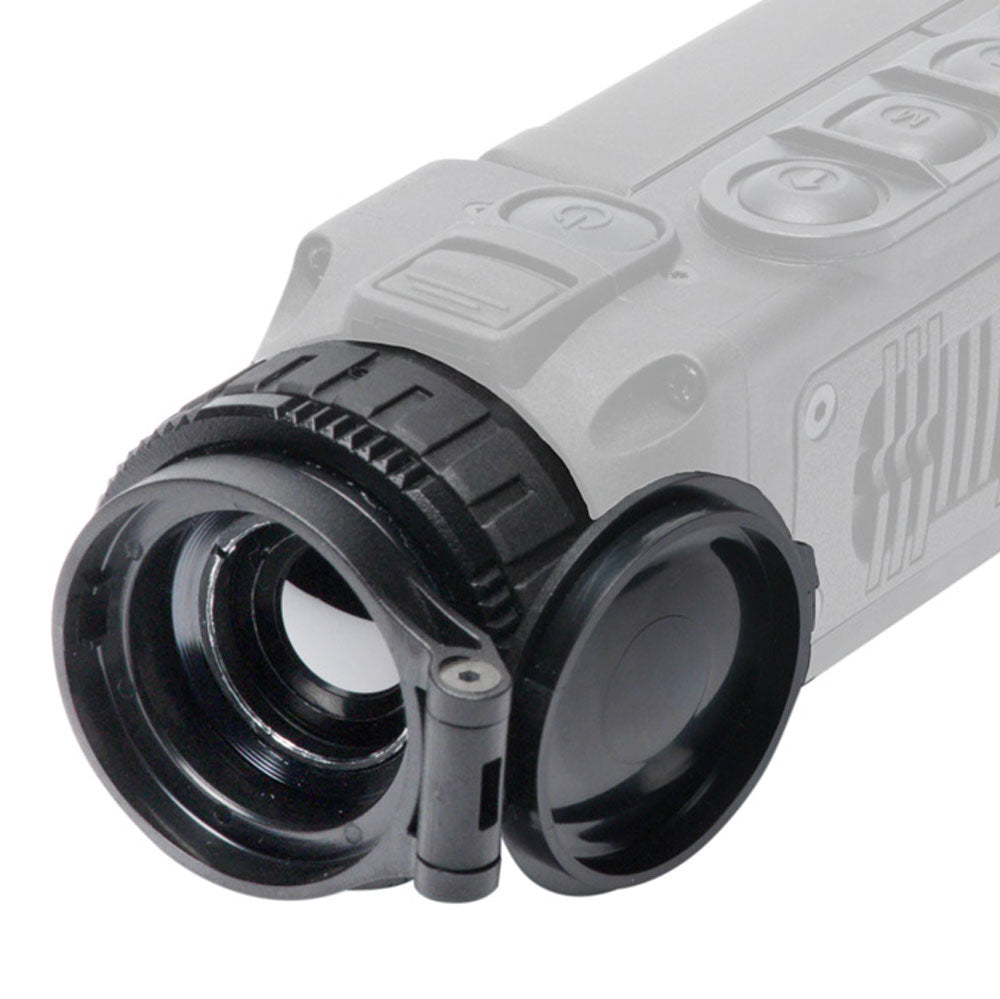

Optically perfect, each Germanium glass lens set feature a quick-disconnect bayonet mounting system. Once mounted to your Helion Thermal Scope, your lens is digitally registered to ensure optimal performance.

Built to an IPX7 waterproof rating, each lens ships with a padded carry case, lens caps, lens cloth, manual and manufacturer’s warranty.

Sku: F28-Lens
Vendor: Pulsar
Best Use - F28, F38 and F50 Germanium Lens Sets for Helion Thermal Imaging Scope
  • BEST USE - Quick-mount germanium glass lens sets instantly change the optical performance of your Helion Thermal Imaging Scope
  • Three available lens sets: F28 (ideal for wide-angle target acquisition), F38 (ideal for mid-range situational awareness) and F50 (ideal for long-range surveillance)
  • Waterproof IPX7 design, push button bayonet mounting, digital registration on mounting to your Helion Thermal Imaging Scope
  • Includes Padded Carry Case, Lens Caps, Lens Cloth, Manual and Manufacturer’s Warranty.
F28, F38 and F50 Germanium Lens Sets for Helion Thermal Imaging Scope Specifications
OPTICAL SPECIFICATIONS

Objective Lens

F28: 1.4x30, f1.2, germanium glass lens

F38: 1.9x38, f1.2, germanium glass lens

F50: 2.5x50, f1.2, germanium glass lens
CumulativeDigital Zoom
(mounted to Helion)
F28: 1.4X to 11.2X

F38: 1.9X to 15.2X

F50: 2.5X to 20.0X
Maximum Range
(mounted to Helion)
F28: 1,095 yards

F38: 1,475 yards

F50: 2,000 yards
Field of View, Angular
F28: 22.0°

F38: 16.3°

F50: 12.4°
Field of View, Linear
(at maximum range)
F28: 426 yards

F38: 422 yards

F50: 435 yards

PHYSICAL SPECIFICATIONS
Dimensions
F28: 1.88x2 inches

F38: 1.88x2 inches

F50: 2.38x2 inches
Weight
F28: 3.2 ozs

F38: 3.2 ozs

F50: 4.8 ozs
Water Resistant?
YES, IPX7
Water Proof?
YES, IPX7
LEGAL
Export License Required?
YES
IN THE BOX
F28, F38 or F50 Germanium Lens Set, padded carry case, lens caps, lens cloth, manual and manufacturer’s warranty.
